Custom Service & Bulk Price ❆ Digital Panel Cooling + Freezing Controller - Dual Zones with 2 output relays & Push Button ❆ Commercial Purposes ❆ China Haswill
TCC-8220A is a commercial purpose programmable temperature controller with 2 output relays for the cooling and freezing cabinets temperature controlling.
Minimum order Amount: 200 USD
Features of Dual zones Thermostat TCC-8220A:
- Dual windows show refrigerator and freezer room temperature separately at the same time;
- Push type buttons;
- High light LED digital tube;
- Controllable temperature range from -30 to 20°C as default;
- within 2 NTC sensors, default 2 m length, ends with a metallic covering;
- Deluxe acrylic front Panel.

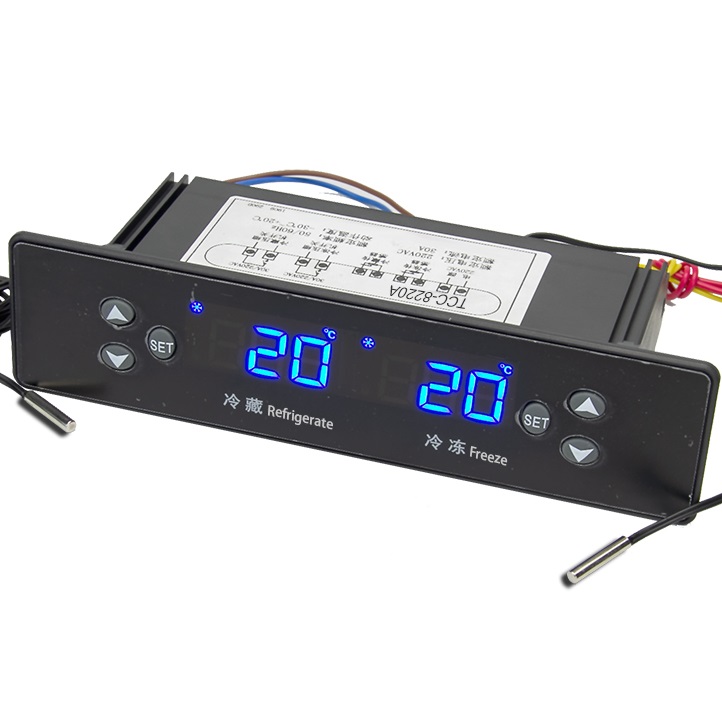

Front Panel of Dual Zone Thermostat TCC-8220A
The setting of the Dual-zones Thermostat TCC-8220A
| Code | Function | Min | Max | Default | Unit |
|---|---|---|---|---|---|
| E1 | Lower Limit for Setting SP | -30 | SP | -05 | °C |
| E2 | Upper Limit for Setting SP | SP | 20 | 12 | °C |
| E3 | Temperature Hysteresis / Return Difference | 01 | 20 | 05 | °C |
| E4 | Compressor Delay Time | 00 | 10 | 2 | Min |
| E5 | Temperature Calibration | -20 | 20 | 00 | °C |
| F1 | Defrosting Lasting Time | 01 | 60 | 20 | Min |
| F2 | Defrosting Cycle / Interval Time | 00 | 24 | 0 | Hour |
| F4 | Display mode when defrosting: 01 Show the sensor temperature instantly; 02 show the sensor temperature of the defrost beginning moment. | 00 | 01 | 01 | N/A |
| C1 | Upper Limit for Alarm | C2 | 120 | 80 | °C |
| C2 | Lower Limit for Alarm | -45 | C1 | -25 | °C |
| C3 | Alarm Temperature Hysteresis | 01 | 20 | 02 | °C |
| C4 | Alarm Time delay | 00 | 60 | 02 | Min |
There are dual zones for each compartment (cold room and freezer room) temperature control in TCC-8220A, but their function menu is totally the same as the above table shows.
How to set the intention temperature?
Press the “SET” key, then press the “UP” or “Down” key to adjust it; it will auto-save and quit to instant temperature readout interface in 6 seconds; you need not press any key to save data.
How to set the other parameters?
Hod the “SET” key for 6 seconds to enter the function menu list; you will see “E1”.

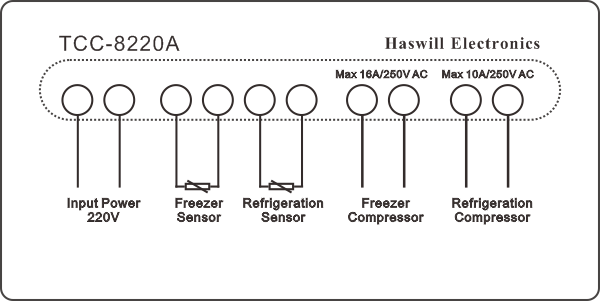

Wiring Diagram of Dual Zone Thermostat TCC-8220A
