U215 USB Temperature and Humidity Data Logger

---

buy this on eBay for European
buy this on eBay for other countries/locations
buy this on Ozon for Russian-speaking Area
Wholesale & OEM ULogm2s Digital USB Temperature & Humidity Recorder | Ready to Ship from China | Reusable - LCD Display - PDF Presentation- Low Price

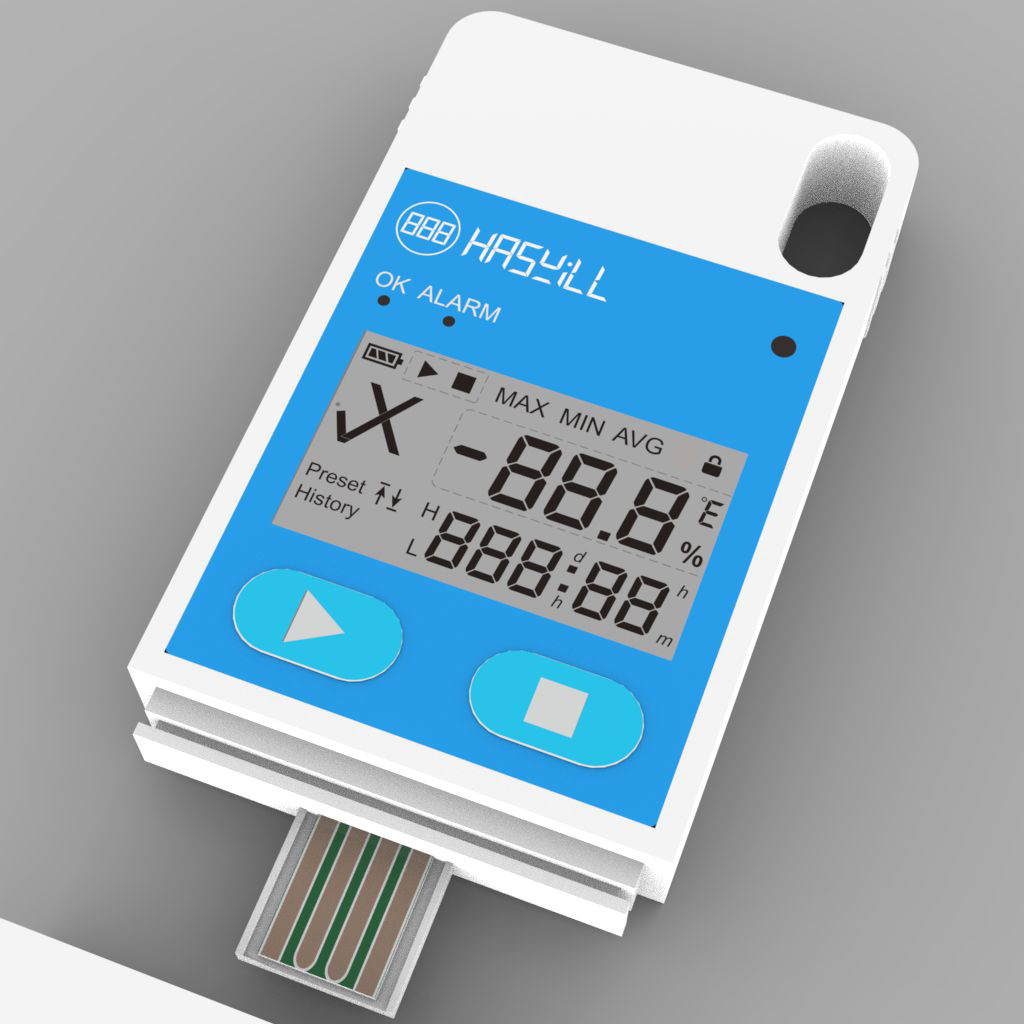

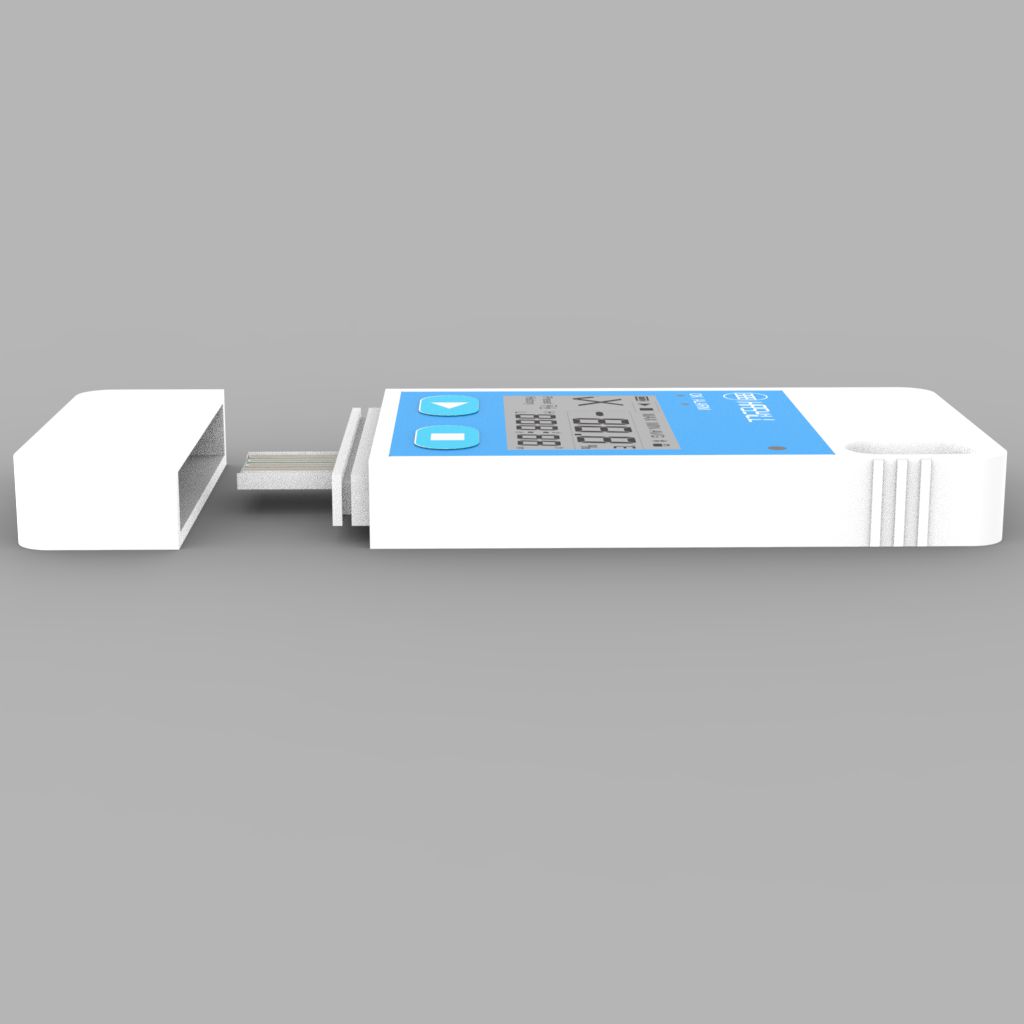

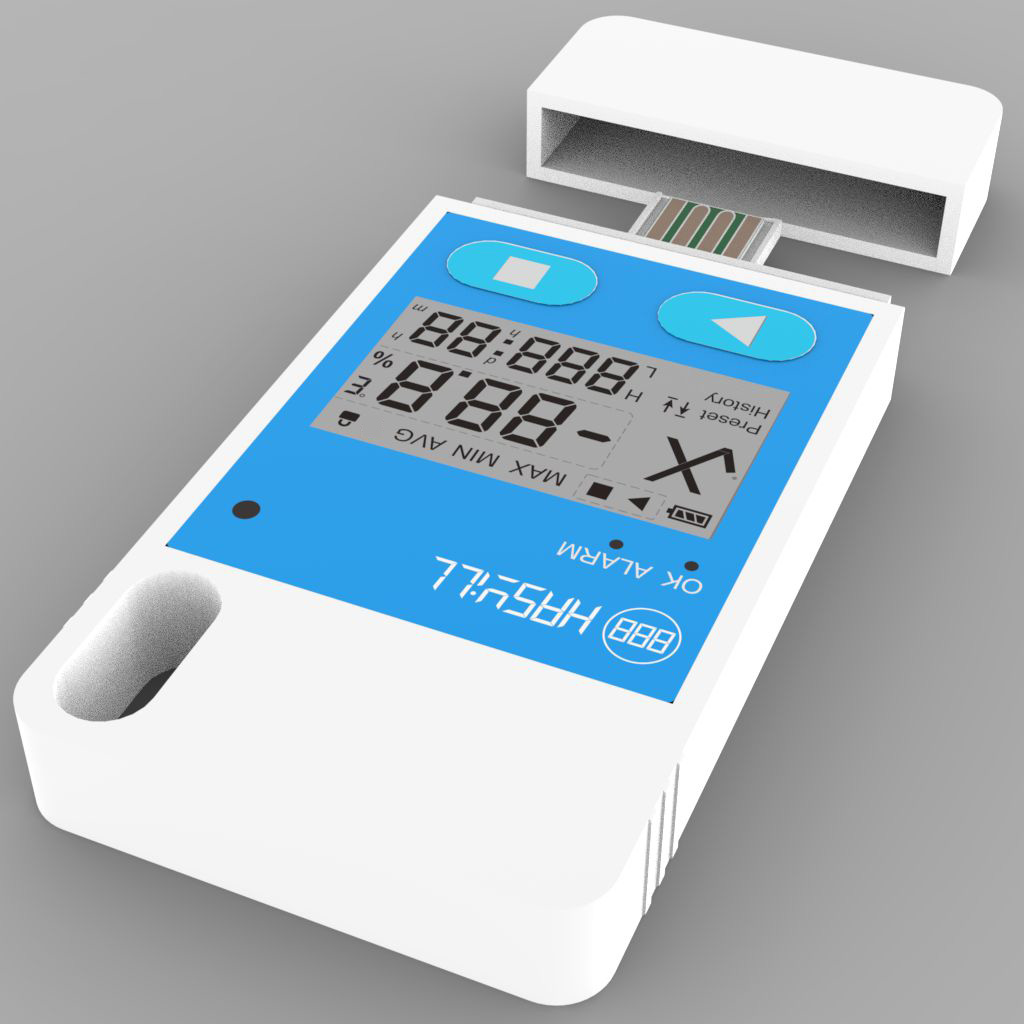

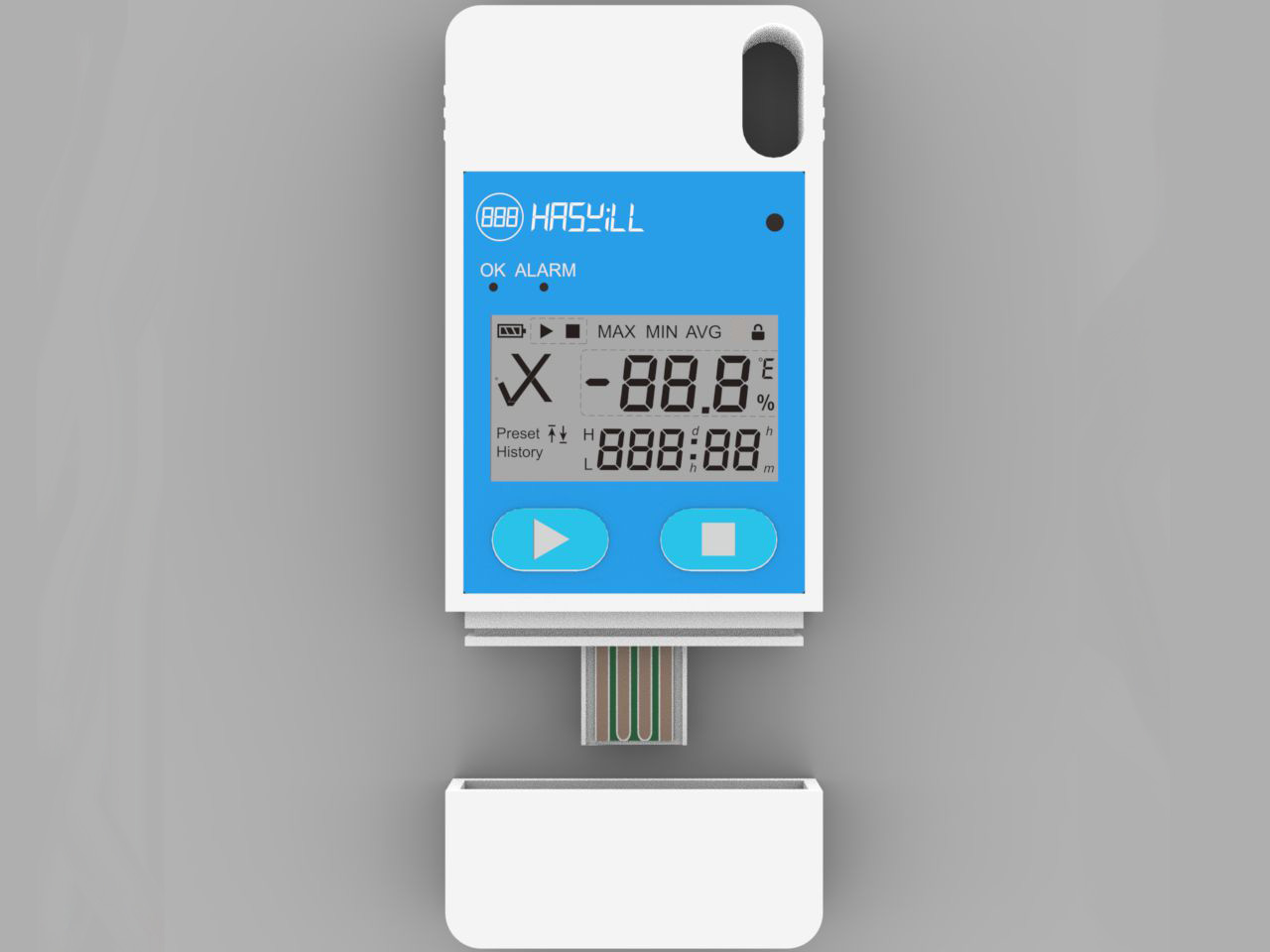

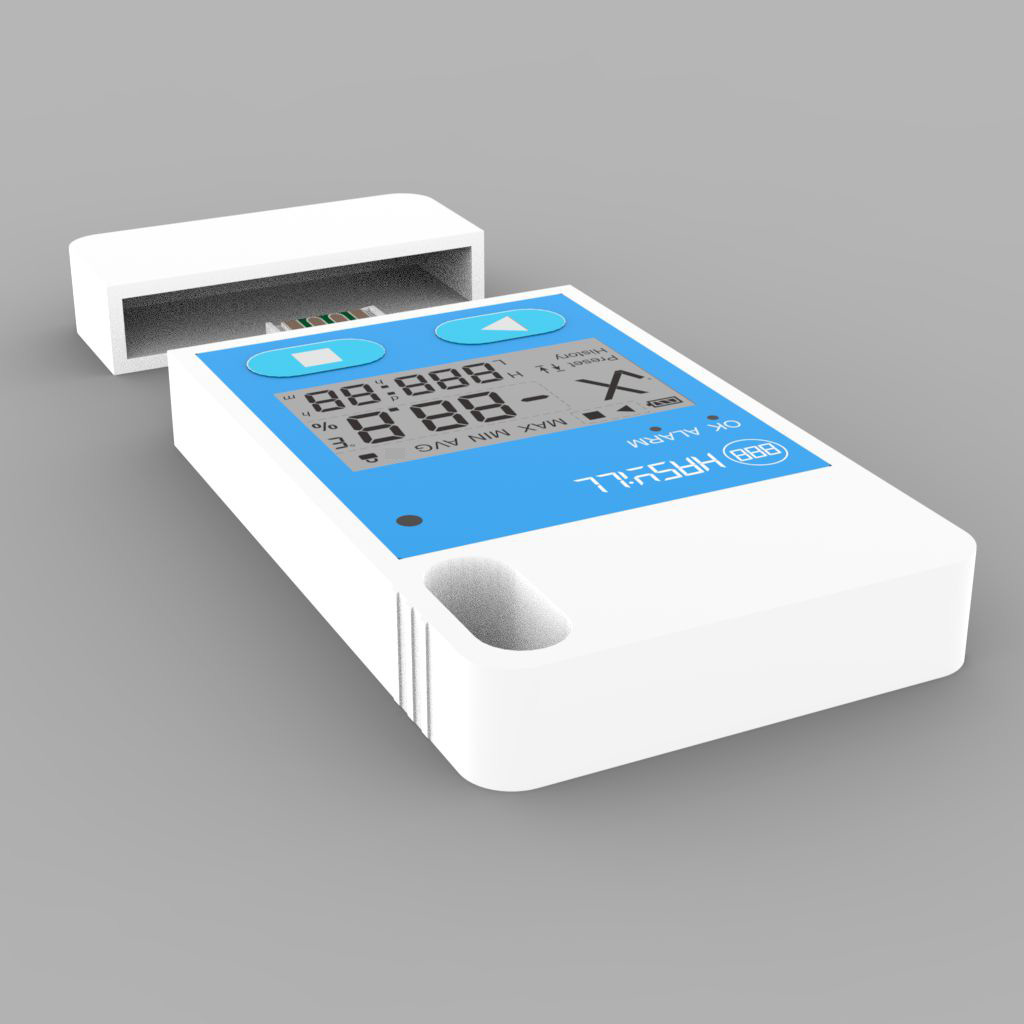

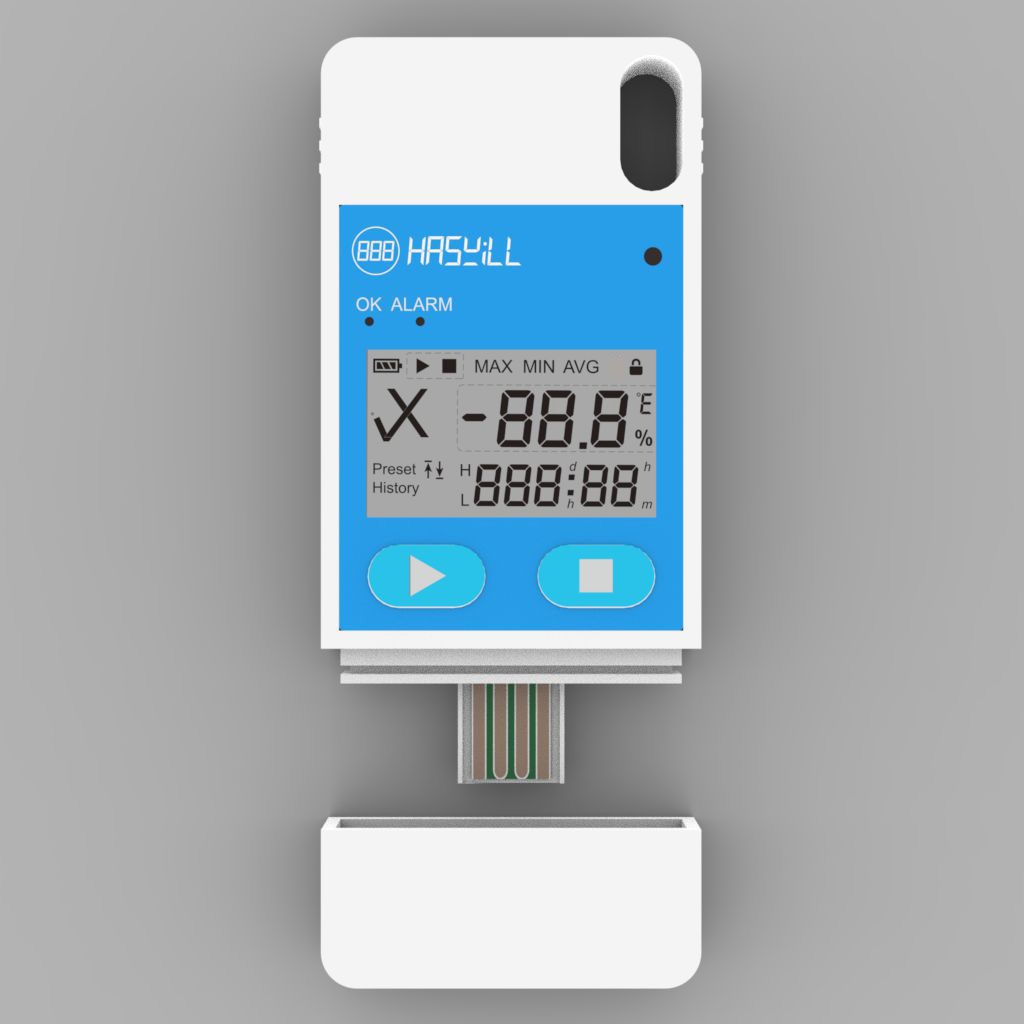

Haswill ULogm2s USB Data logger for monitoring and saving the temperature (from -30 to 70 ℃) and moisture value (1.0 to 99.9 %RH) minimum each 1 minute (editable); The data can be read on the display, and it can be connected to a computer via the USB port to get PDF, TXT and CSV reports, and the user can easily configure it after opening the USB disk. This temp relative humidity recorder a small size is easily portable; it offers the data in CSV, TXT and PDF format. Package: 200 Pieces/CTN.

---

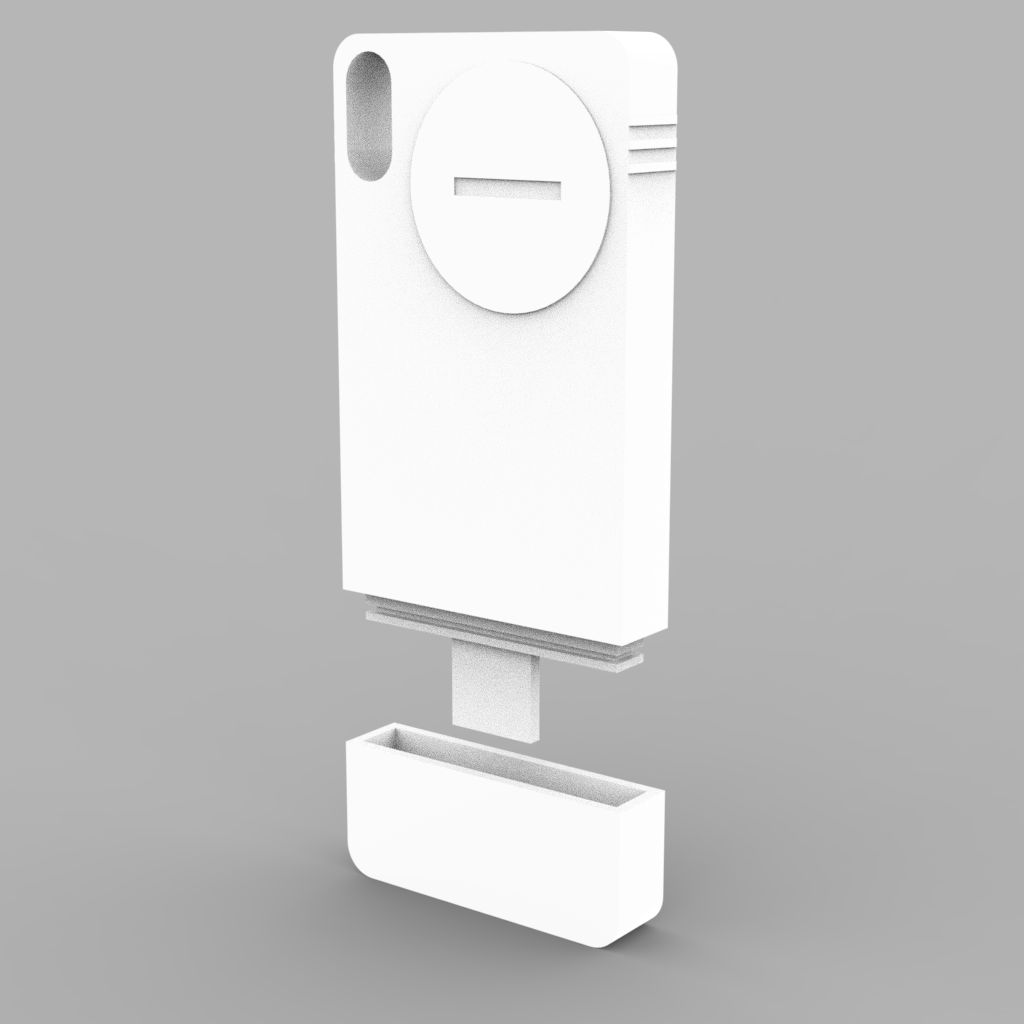

The ULogm2s temperature and humidity data logger has a built-in sensor and a replaceable CR2450 battery, so it is a reusable digital thermometer and logger 2-in-1 device with editable parameters.

---

---

Basic Features

1. mini size 84*42*9.5mm
2. lightweight: 32 grams
3. reusable: replaceable CR2450, 3V, 500 mAh battery
4. IP66 waterproof
5. High Accuracy Humidity Sensor: ± 3%RH (25℃, 20～80%RH), others ±5%RH;
6. High Accuracy Temperature Sensor: ± 0.5 ℃ in the range of -20 to +40 ℃, and ± 1.0 ℃ outside of that range;
7. Capacity: read up to 30,000 group values;
8. IP 66 class waterproof;
9. USB 2.0 port: plug and play, no extra drive required; auto mapping temperature curves.
10. LED indicator flashing if the recorded data exceeds the preset safe range;

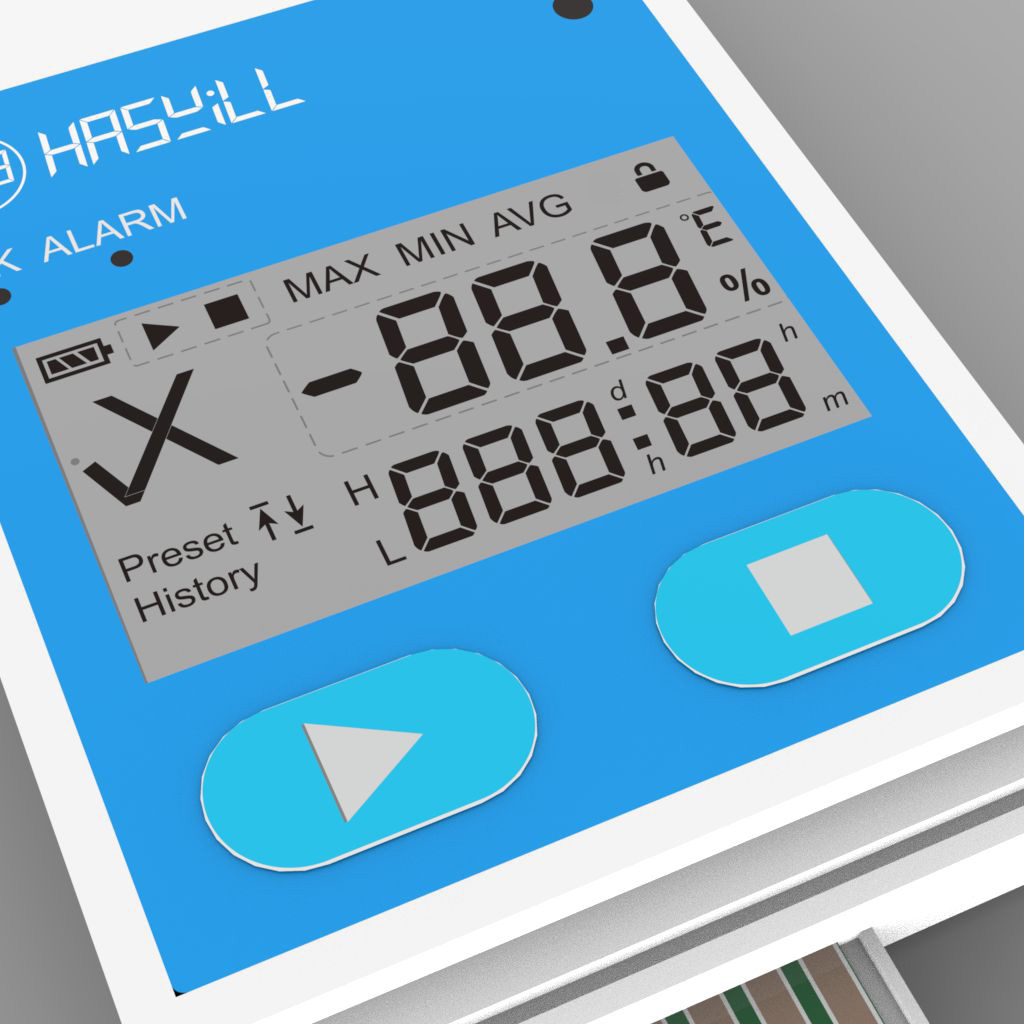

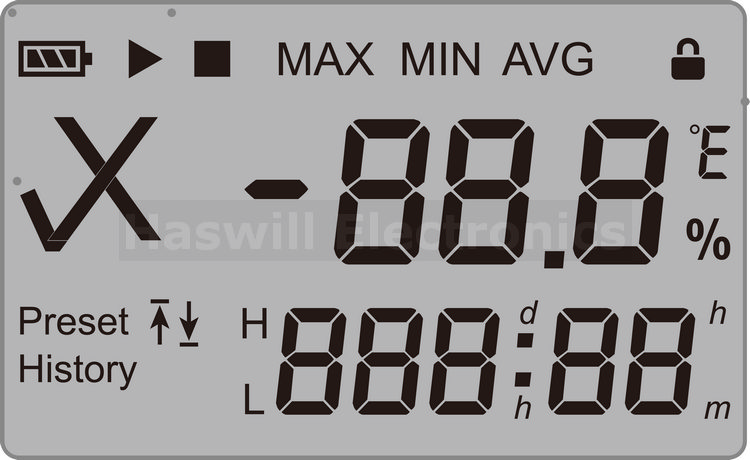

11. Primary parameters on the screen:



    • battery level, recording state;
    • the last recorded temperature and humidity,
    • the average/minimum/maximum temperature and humidity;
    • the Preset High/Low Temperature Alarm value, and Alarm state;
    • the period of exceeding the preset alarm line;
    • the days of having recorded/recordable;
    • the number of recorded arrays;
12. The menu list is cyclically switched;
13. Only two keys exist with simple operating methods
    • start and stop recording
    • check the recorded value
    • Please learn that starting a new recording will empty the old data; which means this device only supports 1 trip; not like the U115 and U135 who supports multiple trips.
14. Compact size and lightweight (net weight is only 32 grams), pocketable & portable;
15. Low Battery Indicator: Visual Alert Alarm icon when crossing predefined thresholds;
16. The Programmable lower/upper limitation for triggering an alarm on display.

---

Programmable Features

This serial USB data logger only offers some basic parameters for Configuration, it is not as comprehensive as U1## serial, but enough power for most users, and one outstanding benefit is you do not need to install upper computer software, click the the HTML file, it will open the configuration page just like open a webpage, and the speed is awesome!

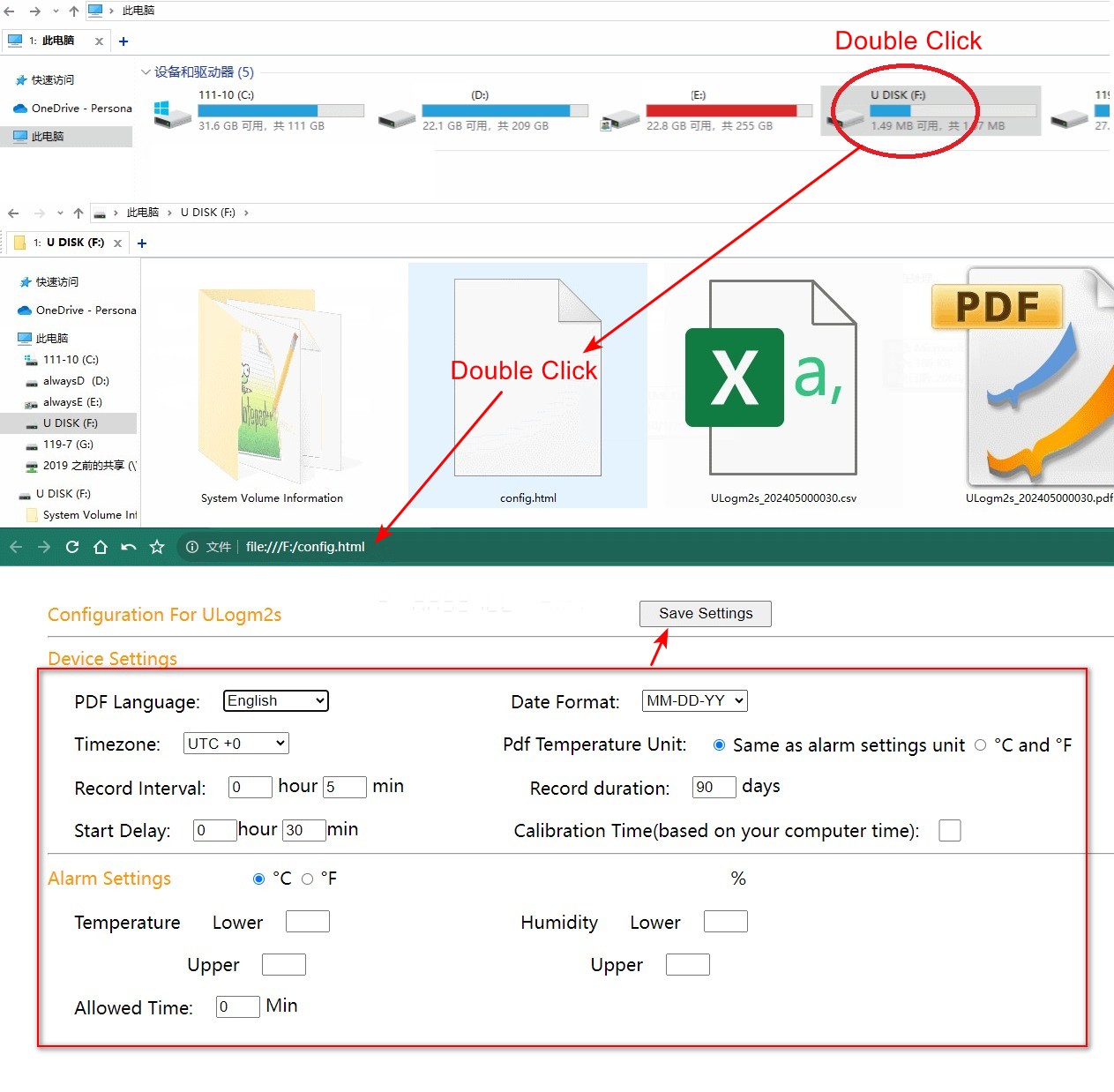

How to Config this data recorder?

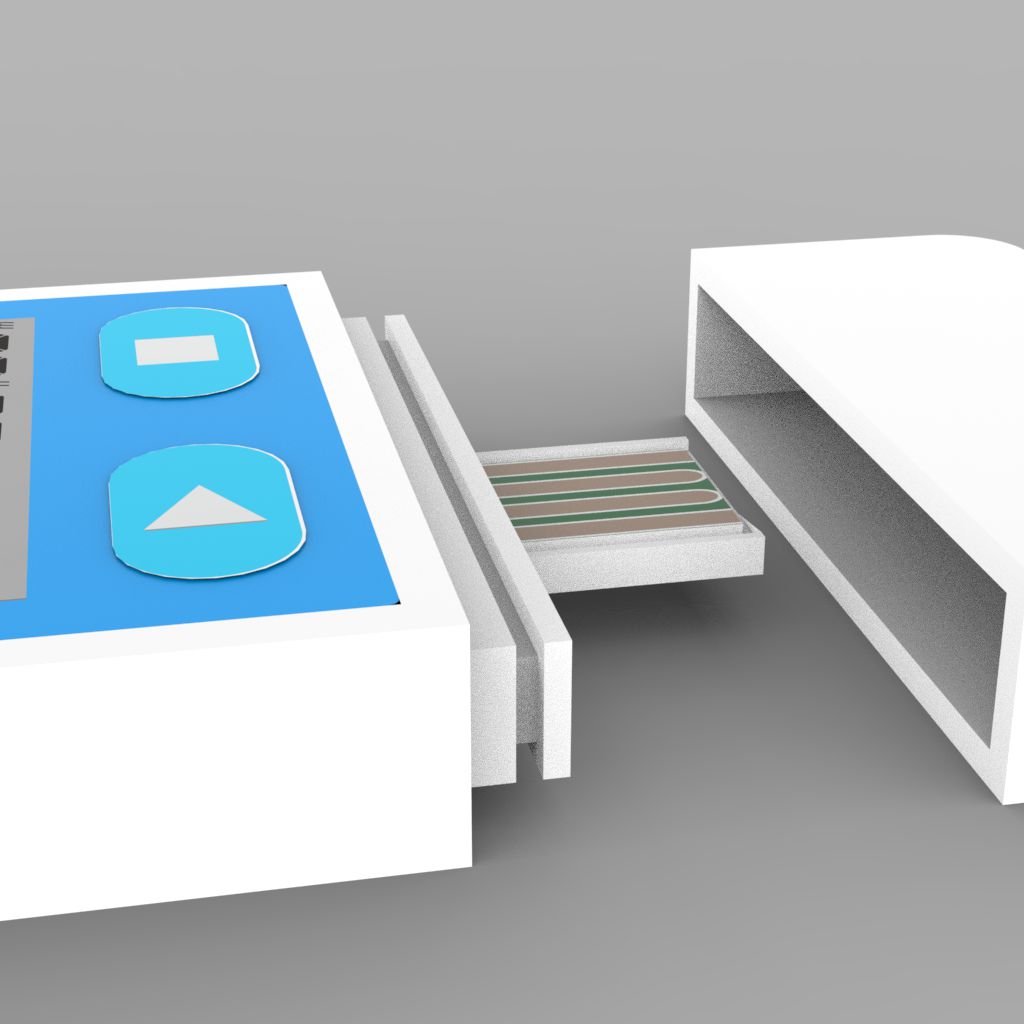

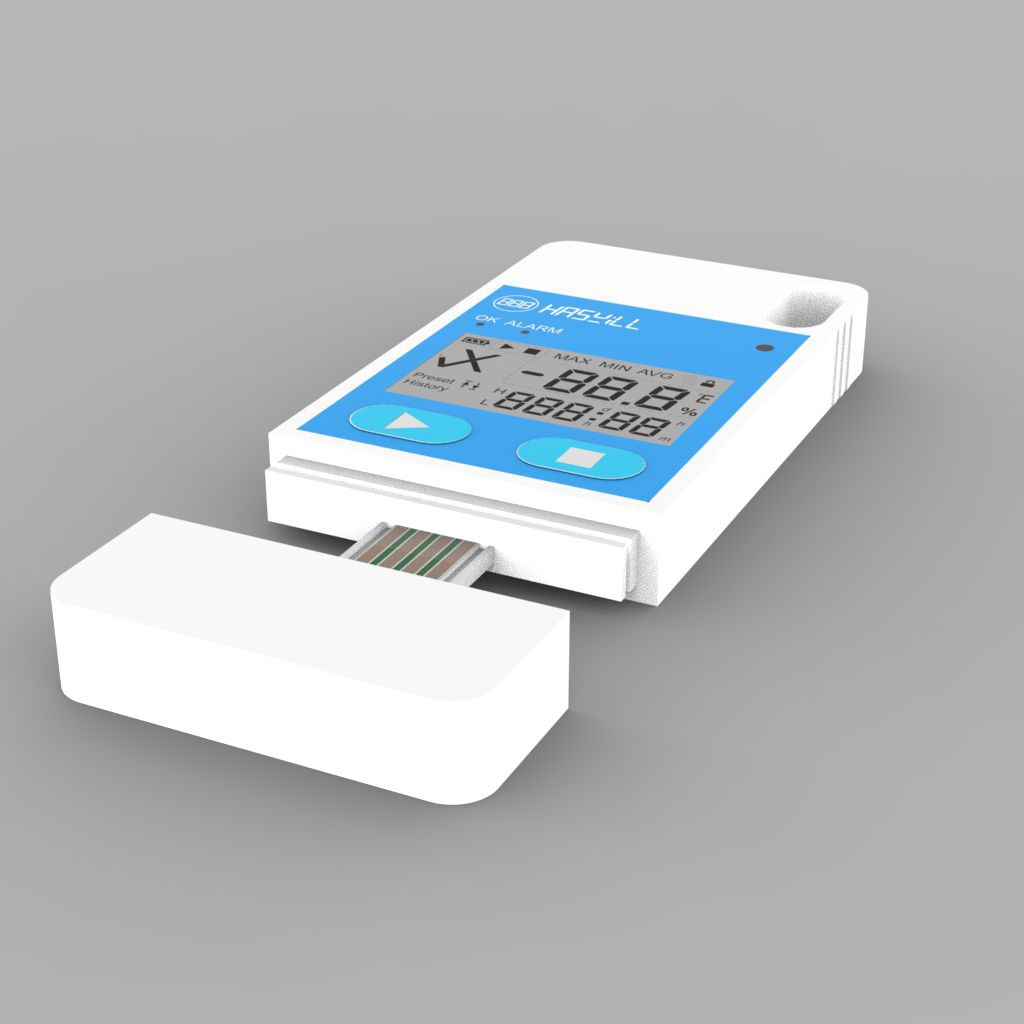

1. shutdown or stop the recording, and take off the USB cover ends;
2. hold the stop button until the screen shows “USB”
3. Insert this device into a computer, you will see there is a new disk;
4. Double-click the disk, and double-click the config.html, you are watching the configuration interface now;
5. Click the save button, Your configuration will be saved as a new file “user.json”, by the way, you can copy and paste this file into other recorders for bulk updating;
6. Unplug this device from the computer;
7. the data logger will read this “user.json” once it starts;

The editable parameters include

1. PDF Language: as you know almost all temperature data recorders will auto-generate the PDF reports, here we offer two languages: English and Chinese, other languages are available for MOQ 2000 PCS; Besides the PDF format, it also offers the “CSV” and “TXT” format.
2. Time Zone: the UTC format;
3. Record Interval is the Sampling period, default as 1 minute, step is 1 minute;
4. Start Delay is the delay time from the moment the user triggers the start recording.
5. Support Fahrenheit Unit (℉), default as Celsius Degree (℃);
6. Date format: offer 3 modes;
7. Temperature Unit: default with Celsius degree just like the alarm temperature unit setting, you can change it to Fahrenheit;
8. Record duration: max 90 days;
9. Calibration Time(based on your computer time): it will sync the time from your computer;
10. Temperature low and upper, in case of room temperature over the safety line, this setting helps alarm by the flashing icon on the screen, and the red alarm indicator will flash.
11. Humidity low and upper;
12. Allowed Time means the alarm delay time, it should be bigger than the record interval time.

---

Applications

Designed with a range from 30 degrees below zero to 70 degrees above zero, these data loggers can meet most requirements in terms of temperature and humidity, except for industrial extremes such as high/low temperatures. For example,

• Agricultural greenhouse temperature and the relative humidity monitor,
• refrigerator food temperature logger when production/storage/transportation,
• record the temperature when transporting the COVID-19 vaccines, and check the temperature data to confirm whether the vaccine potency is still effective; You do not have to use a complex monitoring system/device to record the temperature.
• As the temperature fertility tracker continuously & automated monitors and records the temp.

---

PDF User Manual Free Download

U215 Temperature & Humidity Data Logger User Manual.pdf

---

Data Logger Customization Service

If you want to customize your temperature and humidity data logger, Haswill Electronics is your best choice. The U215 and U215B data loggers are made with the same mold.

A: Appearance Customization:

We provide the following options to customize the appearance.

1. The primary color of the front panel is the background color of the front panel. The default is PANTONE 2925c.
2. The secondary color of the front panel is the background color of the buttons. The default is PANTONE 2915c.
3. The logo on the front panel can only be a single color.
4. The brand name or company name on the front panel can only be a single color.
5. The label on the back panel can replace our model with your model, or you can add your website.

Welcome to contact us for details of the customization service and the conditions (MOQ).

B: Data report and firmware customization (only for U215 which without bluetooth):

The PDF report will show our product model and website by default.

We can change it according to your requirements.

Welcome to contact us for details of the customization service and the conditions (MOQ).

---

Alternative Products

• U114(10c) & U115(10T) only record the temperature.
• U135 Records the temperature and humidity too, and offers 25+ programable options.
• Elitech Temperature Data Logger RC-5 is the same thing as our U115 temp logger but with a different shell, smaller capacity of 32000 data arrays, longer min sampling period (10m),  and price higher
• STC-200+ Temperature Controller could wire an outside alarm, the remote audio device will go off once the room temperature is over the safe line you set.
• STC-9100 is like STC-200 but offers more options, mainly as the defrost thermostat.

---

---
