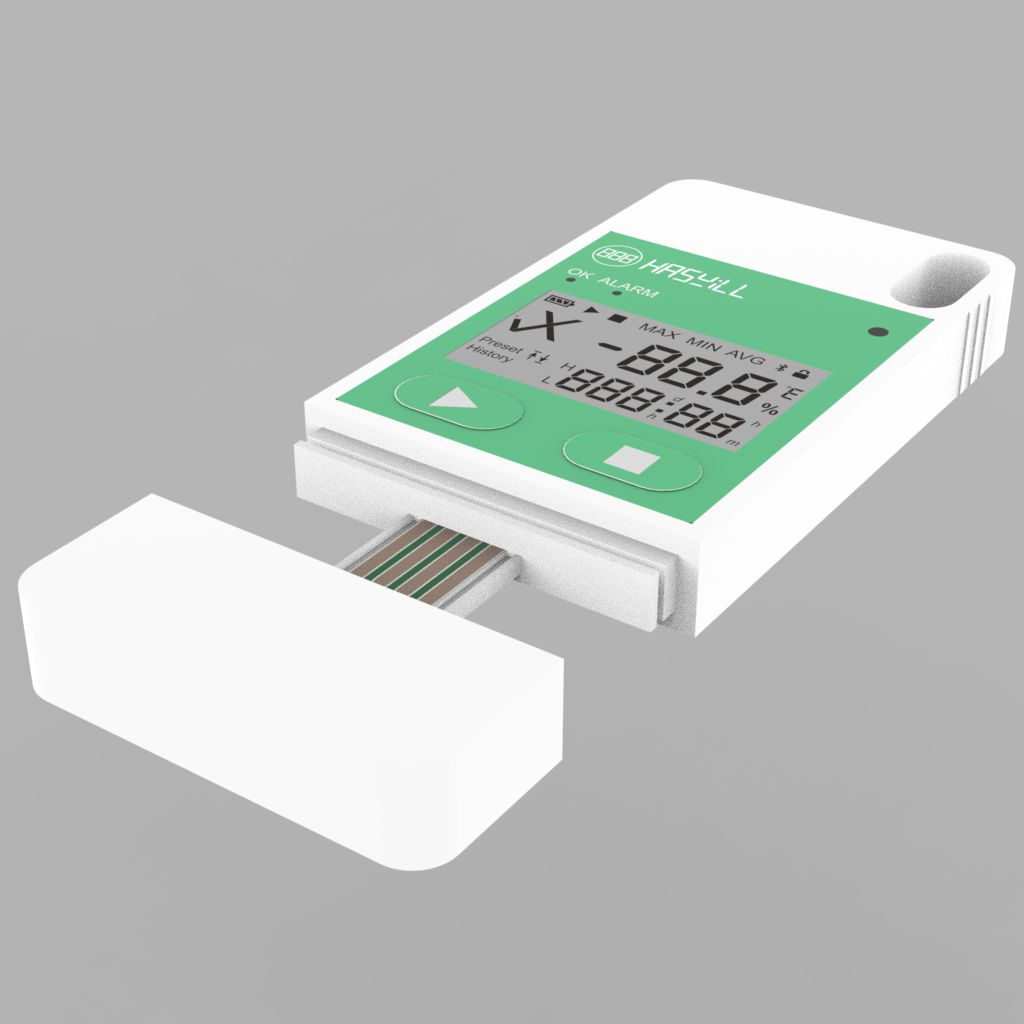

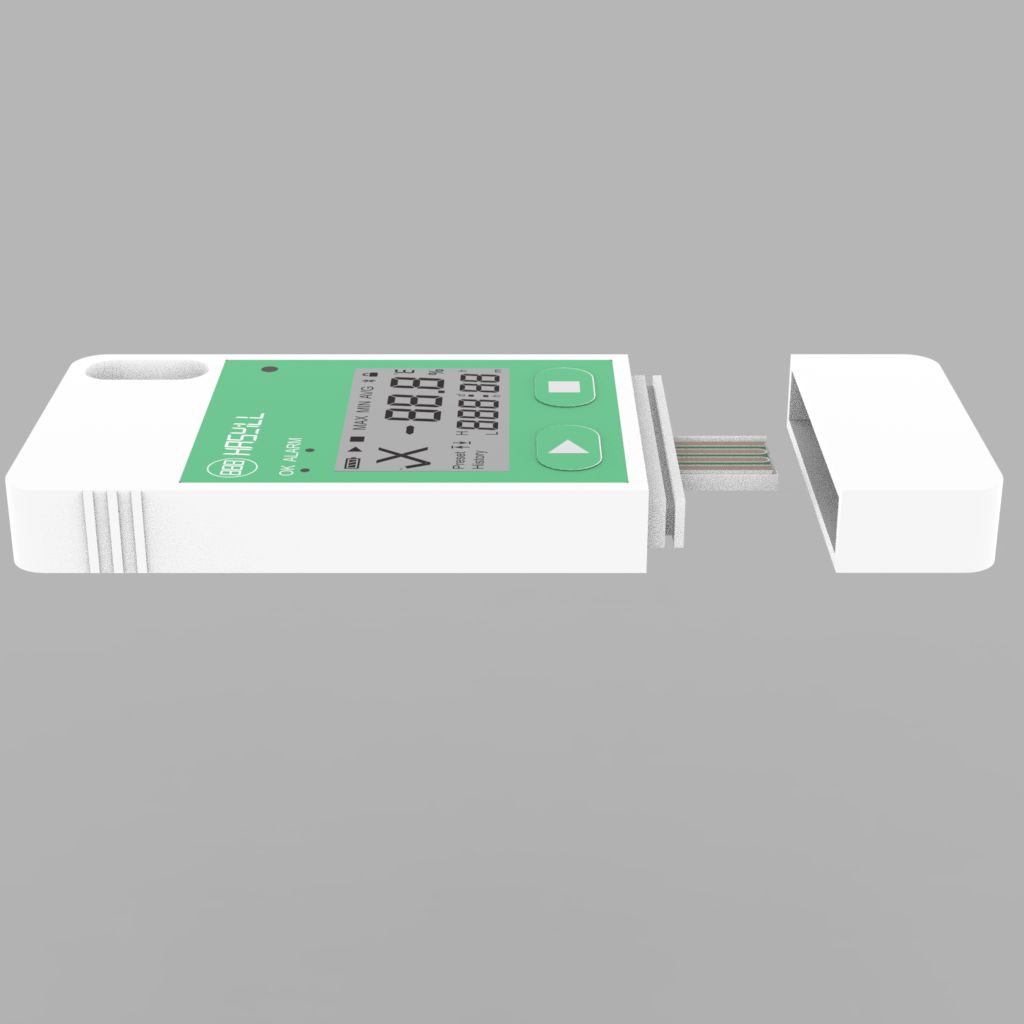

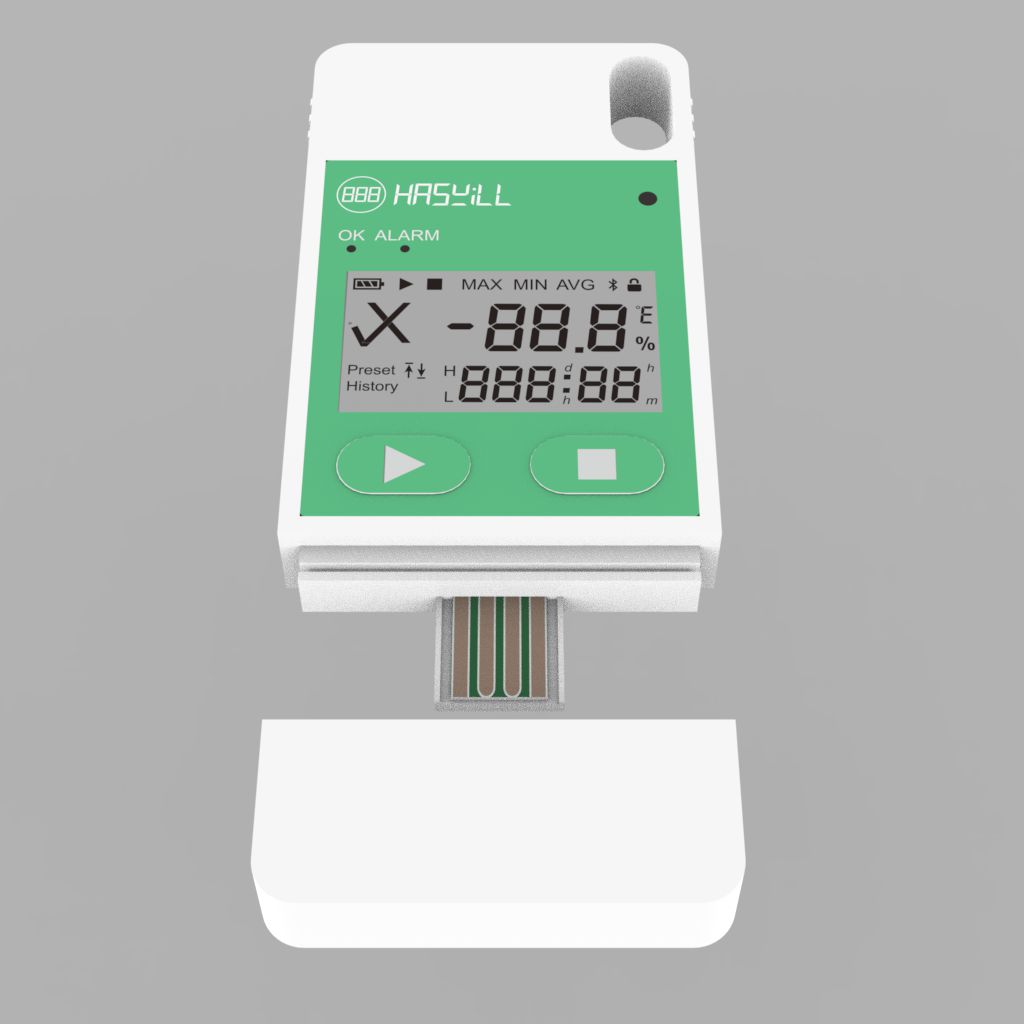

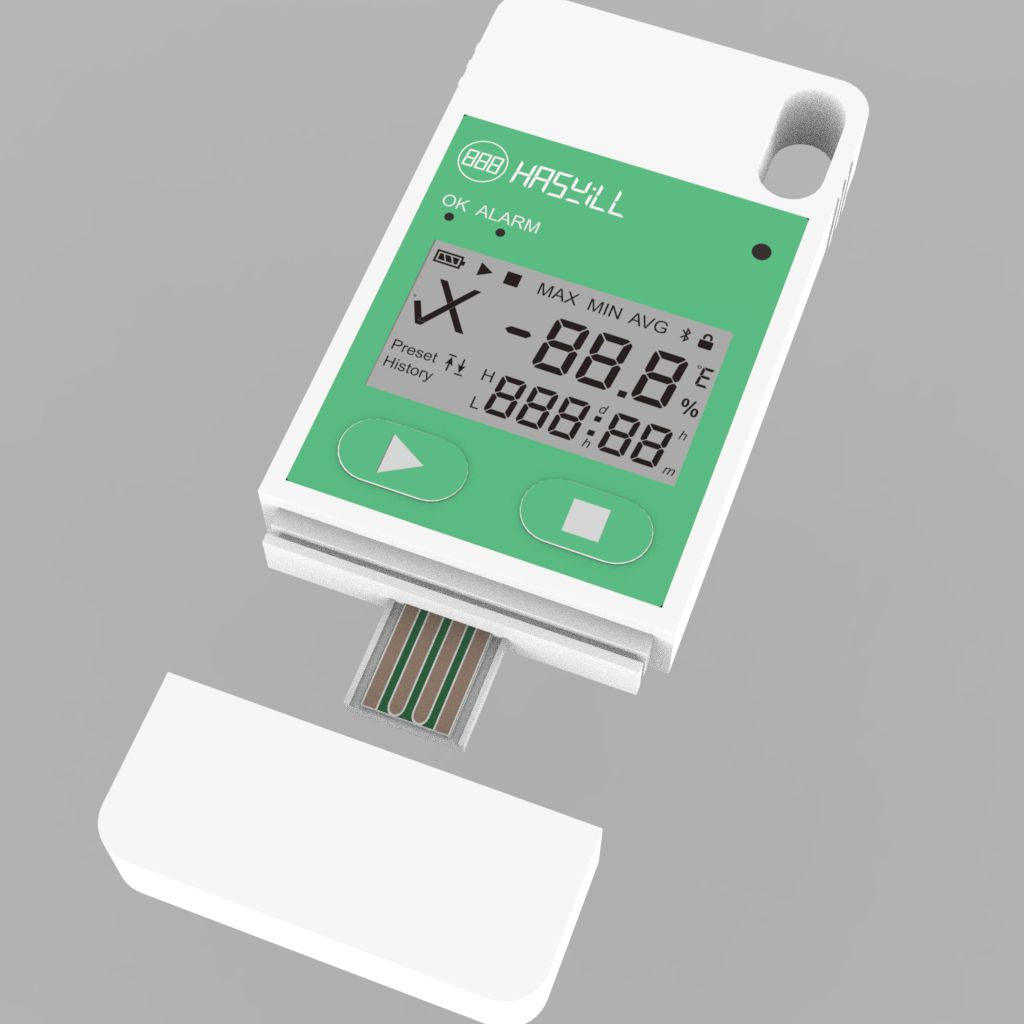

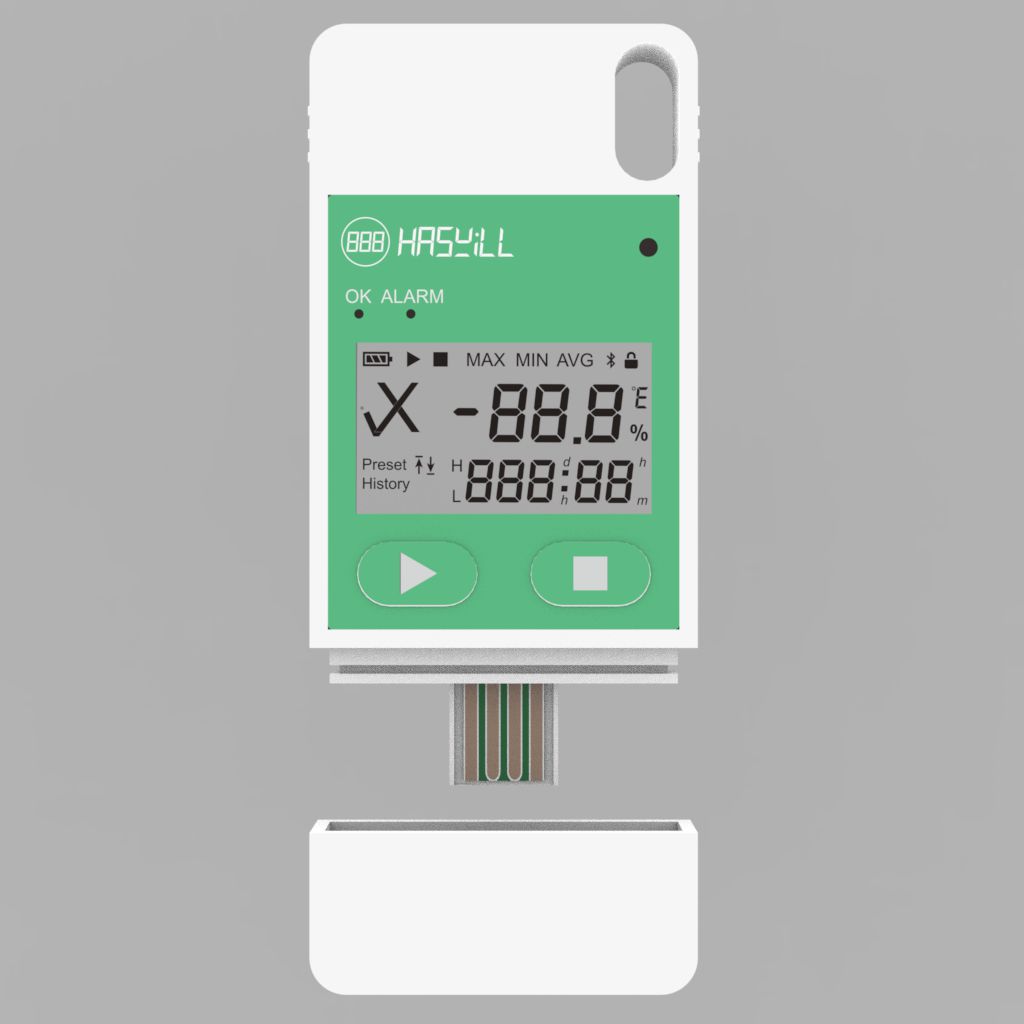

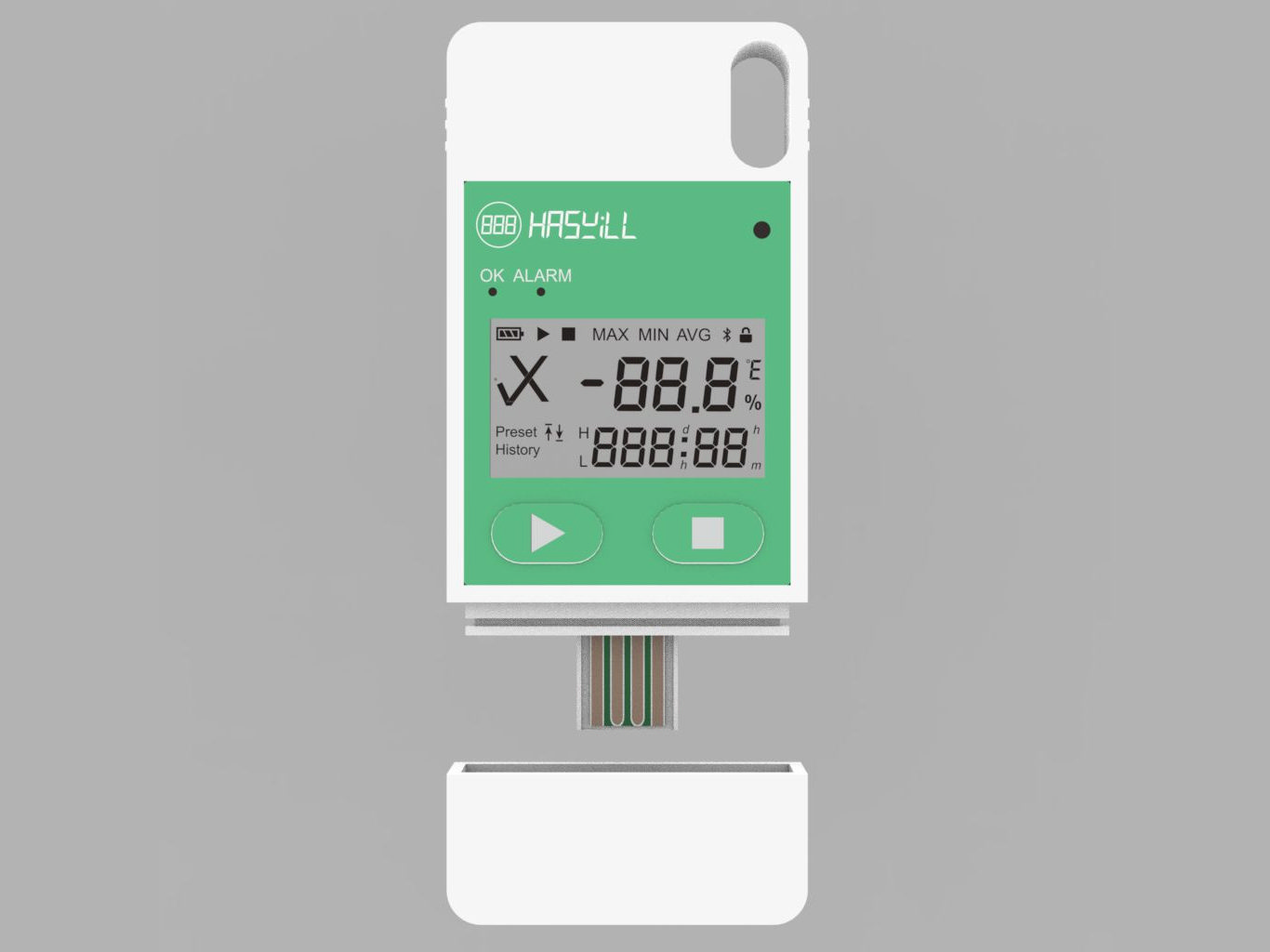

U215B Bluetooth USB Temperature and Humidity Data Logger

---

buy this on eBay for European
buy this on eBay for other countries/locations
buy this on Ozon for Russian-speaking Area
Wholesale & OEM Bluetooth BULogm2s Digital USB Temperature & Humidity Recorder | Ready to Ship from China | Reusable - LCD Display - PDF Presentation- Low Price
Haswill ULogm2s USB Data logger for monitoring and saving the temperature (from -30 to 70 ℃) and moisture value (1.0 to 99.9 %RH) minimum each 1 minute (editable); The data can be read on the display, and it can be connected to a computer via the USB port to get PDF and CSV reports, and the user can easily configure it after opening the USB disk. This temp relative humidity recorder a small size is easily portable; it offers the data in CSV and PDF format. Package: 200 Pieces/CTN.

---

U215B(BULogm2s) Supports Bluetooth connection to mobile APP, this BULogm2s is an upgraded version of U215, but it only supports configuration via APP, the USB was only designed to access recorded data.

---

---

Basic Features

1. Bluetooth and free of charge APP, configure this device on your smartphone.
2. mini size 84*42*9.5mm
3. lightweight: 32 grams

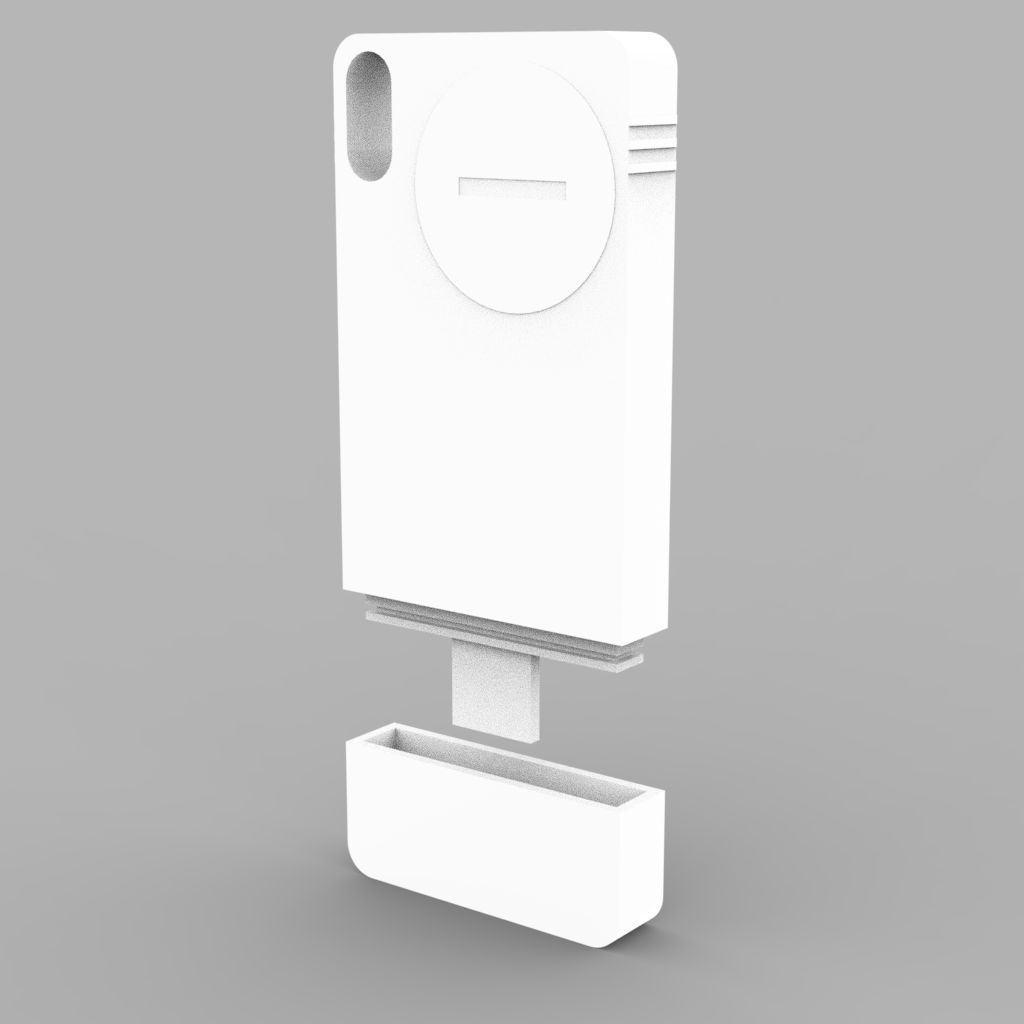

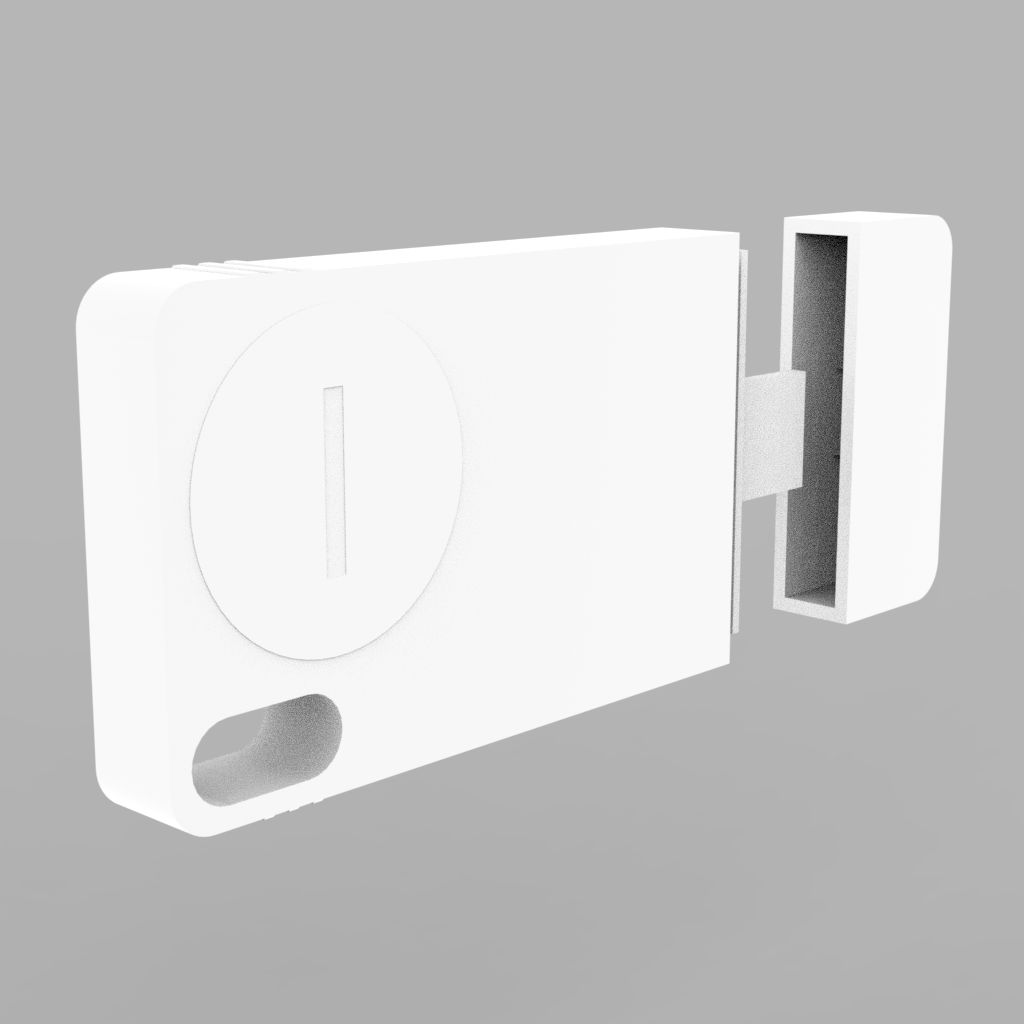

4. reusable: replaceable CR2450, 3V, 500 mAh battery
5. IP66 waterproof
6. High Accuracy Humidity Sensor: ± 3%RH (25℃, 20～80%RH), others ±5%RH;
7. High Accuracy Temperature Sensor: ± 0.5 ℃ in the range of -20 to +40 ℃, and ± 1.0 ℃ outside of that range;
8. Capacity: read up to 30,000 group values;
9. IP 66 class waterproof;

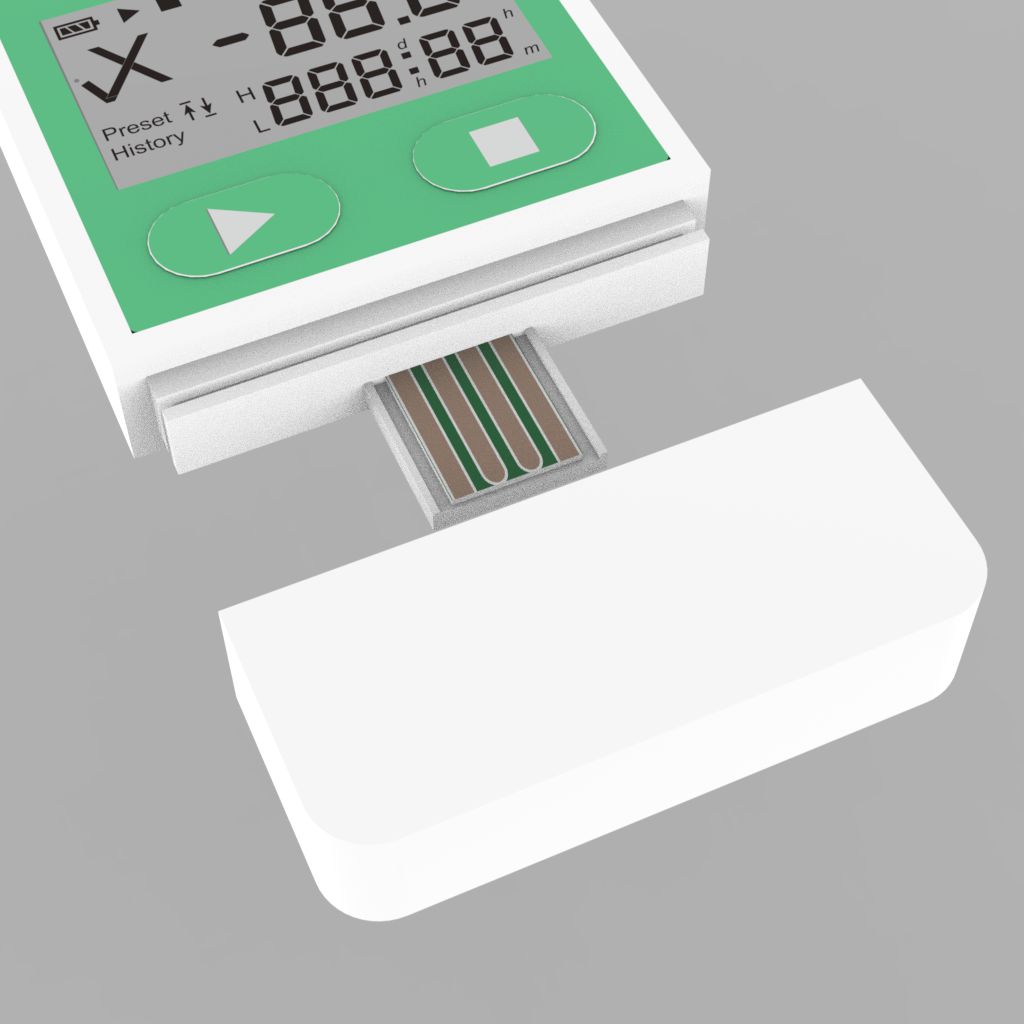

10. USB 2.0 port: plug and play, no extra drive required; auto mapping temperature curves.
11. LED indicator flashing if the recorded data exceeds the preset safe range;

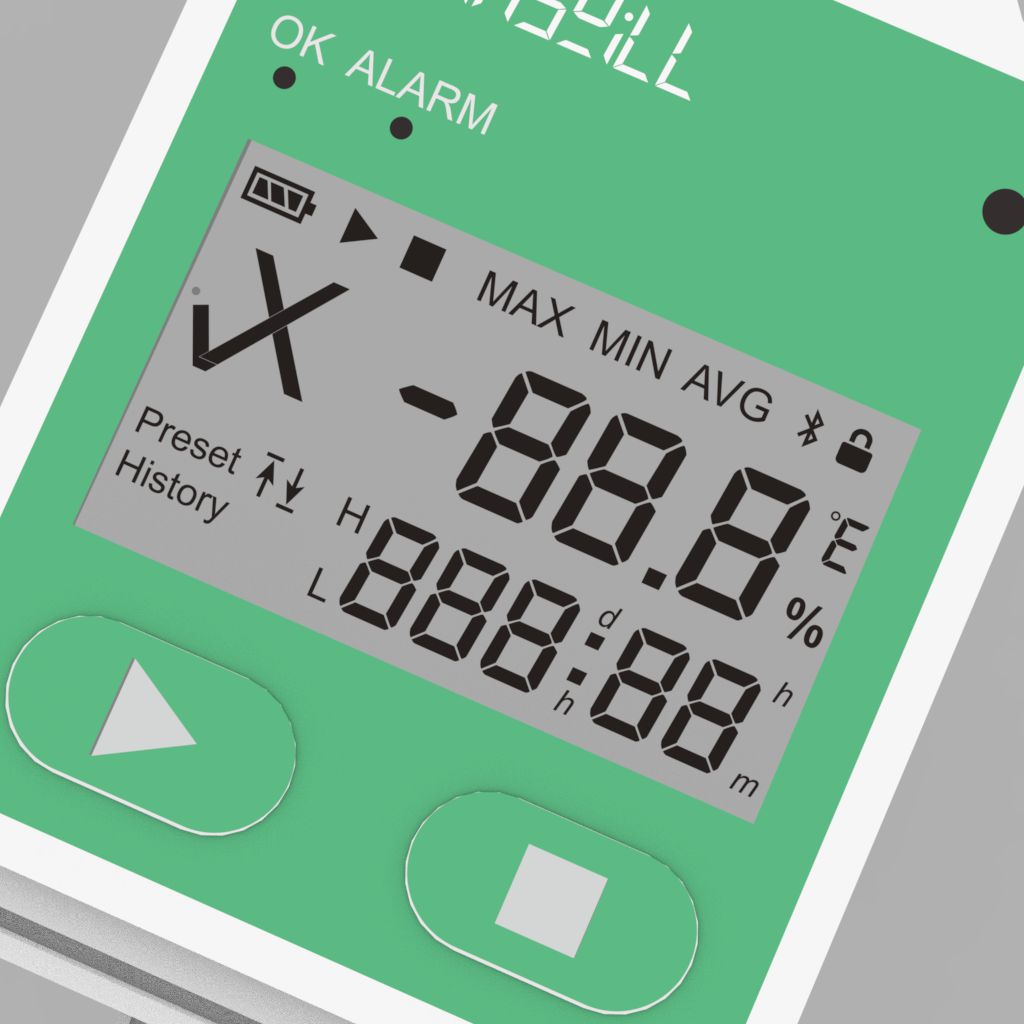

12. Primary parameters on the screen:



    • battery level, recording state;
    • the last recorded temperature and humidity,
    • the average/minimum/maximum temperature and humidity;
    • the Preset High/Low Temperature Alarm value, and Alarm state;
    • the period of exceeding the preset alarm line;
    • the days of having recorded/recordable;
    • the number of recorded arrays;
    • the Bluetooth state
13. The menu list is cyclically switched;
14. Only two keys exist with simple operating methods
    • start and stop recording
    • check the recorded value
    • Please learn that starting a new recording will empty the old data; which means this device only supports 1 trip; not like the U115 and U135 who supports multiple trips.
15. Compact size and lightweight (net weight is only 32 grams), pocketable & portable;
16. Low Battery Indicator: Visual Alert Alarm icon when crossing predefined thresholds;
17. The Programmable lower/upper limitation for triggering an alarm on display.

---

Programmable Features

This serial USB data logger only offers some basic parameters for Configuration, it is not as comprehensive as U1## serial, but enough power for most users, and one outstanding benefit is you do not need to install upper computer software, just click the the HTML file, it will open the configuration page just like open a webpage, and the speed is awesome!

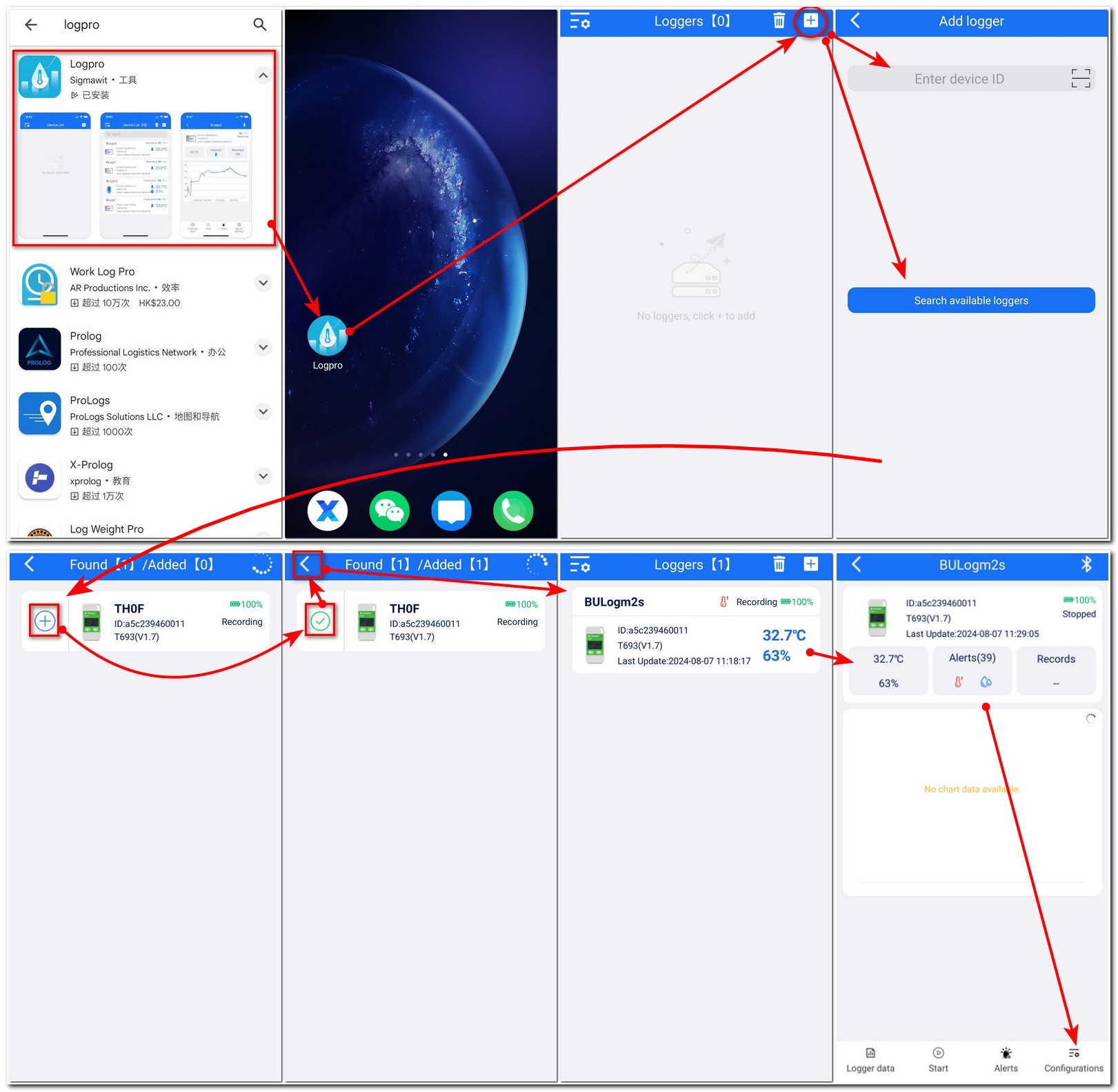

How to Config this data recorder?

1. Download the APP by scanning the QR on the user manual or search LogPro in the Google Play/Apple APP Store
2. Click the APP to Run.

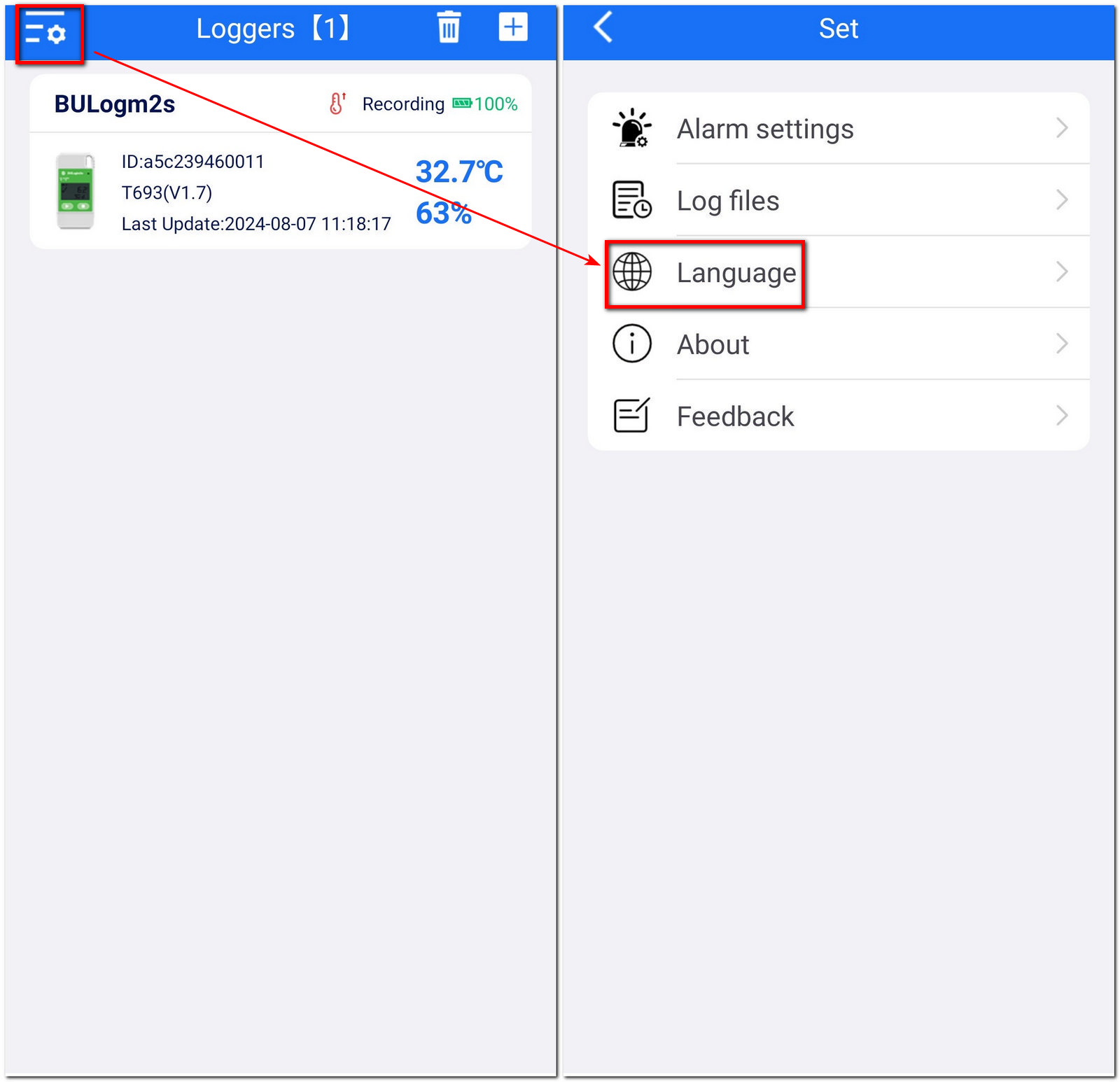

3. Switch the language to English if needed.



4. Power on this device by pressing the [Startt] buttons for 3 seconds.
5. Back to your Phone, Now you can click the “+” icon on the right top of the screen,
6. There are two ways to connect this device
   • Click the search, and you will see the recorder in the list, then click the “+” icon to finish the connection, and the “+” icon will become to “√” Icon.
   • Scan the bar code to connect.
7. Please Learn that once connected, it will auto-sync time and timezone from your phone.
8. Click the recorder list, it will show the recorded temperature humidity, and other data.

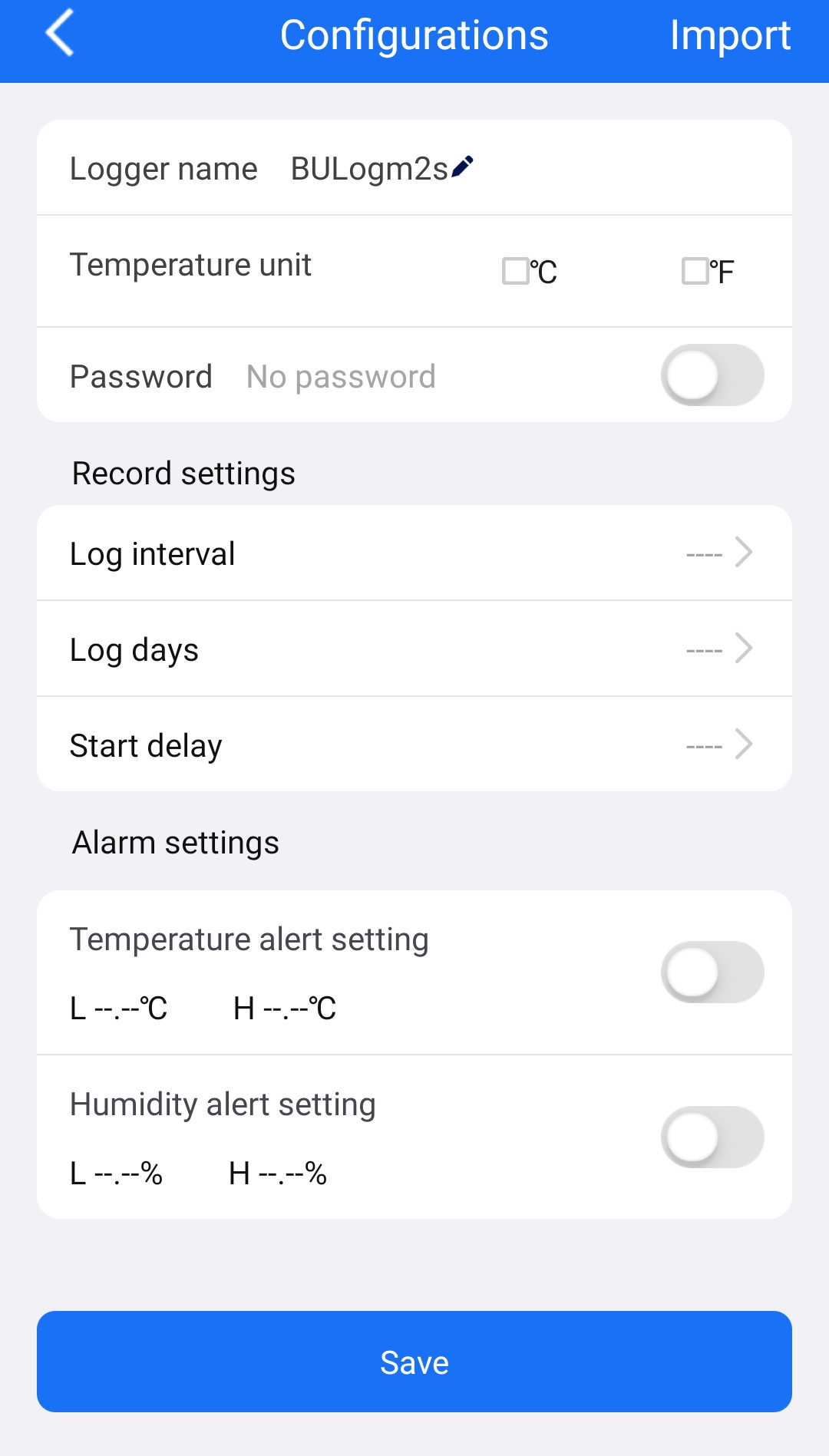

9. Click the configurations on the bottom right, you will see all the editable parameters.
10. Modify all items as you require



    • Logger’s Name
    • Temperature Unit
    • Password
    • Log Interval
    • Log Days
    • Start Delay time
    • Alarm Upper and Lower Limitations for Temperature and Humidity.
11. At last, click the “Save” button.

---

Applications

Designed with the range from -30 degrees to 70 degrees and moisture rate from 1%RH to 99%RH, Suitable for use in a variety of scenarios, whether it is cold chain transportation, frozen food storage, or scientific research, it can help you.

---

PDF User Manual Free Download

U215B Temperature & Humidity Data Logger User Manual & Data sheet.pdf

---

Data Logger Customization Service

If you want to customize your temperature and humidity data logger, Haswill Electronics is your best choice. The U215 and U215B data loggers are made with the same mold.

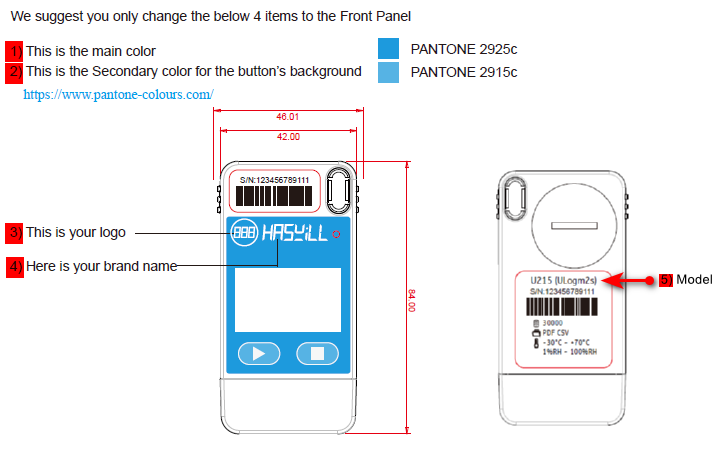

A: Appearance Customization:

We provide the following options to customize the appearance.

1. The primary color of the front panel is the background color of the front panel. The default is PANTONE 2925c.
2. The secondary color of the front panel is the background color of the buttons. The default is PANTONE 2915c.
3. The logo on the front panel can only be a single color.
4. The brand name or company name on the front panel can only be a single color.
5. The label on the back panel can replace our model with your model, or you can add your website.

Welcome to contact us for details of the customization service and the conditions (MOQ).

B: APP and PDF Report Template Customize:

The PDF report will show our product model and website by default.

We can change it according to your requirements.

Welcome to contact us for details of the customization service and the conditions (MOQ).

---

Alternative Products

• ULogm2s USB Temperature and Humidity Data Logger (without Bluetooth, config it via Computer)
• U114(10c) & U115(10T) only record the temperature.
• U135 Records the temperature and humidity too, and offers 25+ programable options.
• Elitech Temperature Data Logger RC-5 is the same thing as our U115 temp logger but with a different shell, smaller capacity of 32000 data arrays, longer min sampling period (10m),  and price higher
• STC-200+ Temperature Controller could wire an outside alarm, the remote audio device will go off once the room temperature is over the safe line you set.
• STC-9100 is like STC-200 but offers more options, mainly as the defrost thermostat.

---

---
